High-Performance Transformer Spade Terminals , Transformer Spade Connectors & Copper Studs for Critical Electrical Connections

We are one of the leading manufacturers and exporters of precision-engineered transformer connectors from India. We have been supplying high-current Transformer Spade Terminals, robust Copper Transformer Studs, and durable Bronze Transformer Spades, , Bronze Spade Terminal Connectors, Brass Spade Terminals for transformers.  to the global power transmission and distribution market for over three decades. Our expertise lies in producing mission-critical components like NEMA spaced transformer spades and copper threaded studs for transformer bushings, which are integral to ensuring safe, reliable, and efficient electrical connections in transformers. Every product is manufactured with stringent adherence to international standards, including ASTM, BS, DIN, and IS specifications, guaranteeing performance under demanding conditions. Our commitment to Exceptional Experience, Expertise, Authoritativeness, and Trustworthiness (E-E-A-T) is embedded in our manufacturing philosophy, from raw material selection to final quality inspection. We serve a global clientele, providing solutions that meet the exacting demands of power utilities, transformer OEMs, and electrical maintenance sectors worldwide.

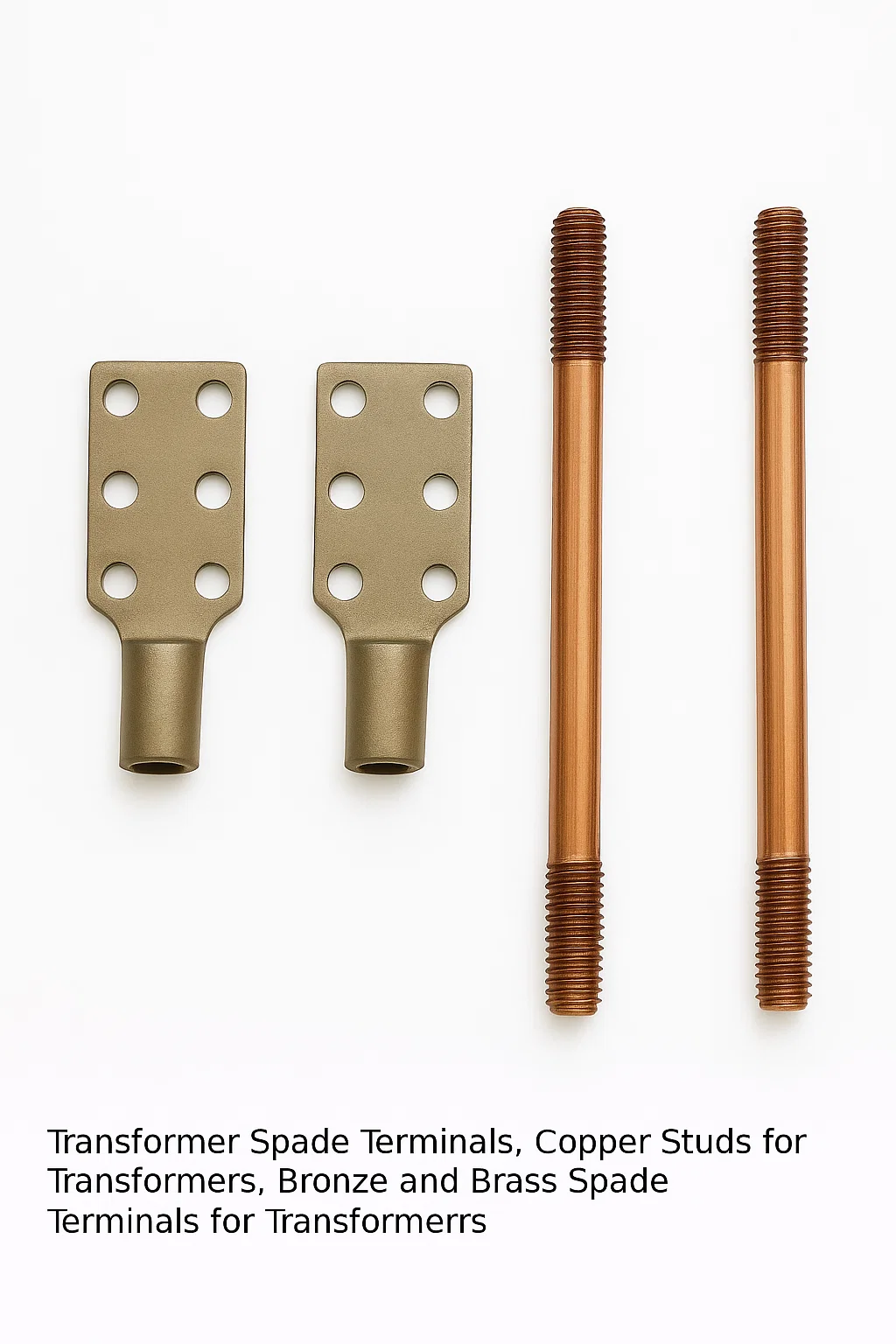

Transformer Spade Terminals represent a cornerstone category within electrical power components, engineered specifically to facilitate secure and efficient connections at the transformer’s interface point. These robust lugs are designed with a characteristic forked, flat-tongue end that slides seamlessly onto a corresponding transformer bushing stud or bolt, where it is then secured with a nut. The primary function of a high-quality transformer spade terminal is to establish a low-resistance, high-current path between the external cabling or busbar and the internal transformer windings, a critical junction where any compromise can lead to excessive heat, energy loss, or failure. Manufactured from high-conductivity metals, these spades must withstand significant mechanical clamping forces, thermal cycling from load variations, and potential environmental exposure. We produce these electrical connector spades in strict conformance to dimensional and material standards, ensuring reliable performance in both distribution and power transformer applications. Their design prioritizes not only electrical efficiency but also ease of installation and maintenance, making them a vital spare part for utility crews and OEMs alike across global power infrastructure projects.

Copper Studs for Transformers are fundamental, threaded fastening components that serve as the integral connection point protruding from a transformer’s bushing. These solid, high-integrity copper transformer studs are machined from high-purity Electrolytic Tough Pitch (ETP) Copper to maximize electrical conductivity, often exceeding 101% IACS, which is essential for minimizing I²R losses at the connection. The stud is typically threaded along a portion of its length, commonly with 3/8″, 1/2″, or 3/4″ UNC threads, to accept the transformer spade terminal and a securing nut. The unthreaded shoulder section often provides a precise seating surface for the spade. As a critical part of the current path, the copper bushing stud must exhibit excellent mechanical strength to handle the torque from tightening without deformation and maintain its structural integrity under thermal stress. Our manufacturing process for these studs involves precision turning, threading, and rigorous inspection to guarantee perfect thread form and dimensional accuracy, ensuring they mate flawlessly with spade terminals and provide a stable, long-lasting foundation for the entire electrical connection assembly.

Bronze Transformer Spades offer a distinct and often superior alternative where mechanical resilience is as critical as electrical performance. Crafted from high-strength Phosphor Bronze alloys conforming to standards like ASTM B139, these bronze electrical spades provide exceptional tensile strength, superior fatigue resistance, and excellent spring properties compared to pure copper counterparts. This makes them the connector of choice for applications subject to persistent vibration, frequent thermal cycling, or where a higher inherent clamping force is required to maintain connection integrity over time. The bronze transformer spade terminal maintains very good electrical conductivity while its enhanced durability significantly reduces the risk of relaxation or creep at the connection point, a common cause of hot joints. This combination of properties is invaluable in demanding environments such as railway traction systems, mobile substations, or industrial facilities with heavy machinery. Our high-strength bronze spades undergo the same precision forging and machining as other types, resulting in a component that delivers unwavering reliability for the most challenging transformer connection scenarios.

A Transformer Spade of Copper specifically refers to the flat, forked connector component itself fabricated from high-conductivity copper rather than bronze or brass. This pure copper spade lug is engineered to provide the absolute lowest possible electrical resistance at the connection interface, which is paramount for maximizing energy efficiency and managing thermal rise in high-current applications. The copper transformer spade is designed to be malleable enough to ensure a broad, conforming contact area when clamped onto a bushing stud, yet robust enough to resist deformation under torque. We manufacture these from premium C11000 ETP Copper billets, often forging them to achieve a dense, uniform grain structure that enhances both electrical and mechanical properties. While it may not possess the ultimate mechanical strength of bronze, a high-quality copper electrical spade, when properly installed with the correct hardware, provides an exceptionally reliable and efficient connection for the vast majority of standard power and distribution transformer installations, making it a highly sought-after component in utility and industrial grids worldwide.

Copper Threaded Studs for Transformer Bushings are specialized fasteners that combine the role of a structural bolt with that of a primary electrical conductor. These threaded copper studs are meticulously machined to create a durable, conductive post that is permanently fitted into or through a transformer’s bushing assembly. The threading, precisely cut to UNC or metric specifications, allows for the secure attachment of spade terminals, lock washers, and nuts. The material choice of high-conductivity copper is non-negotiable here, as the stud itself forms a critical segment of the live current path from the internal winding connection to the external world. Precision in the manufacturing of these transformer bushing studs is critical; any imperfection in thread pitch or diameter can lead to poor engagement, cross-threading, or inadequate clamping force, all of which compromise the connection’s safety and performance. Our production focuses on achieving impeccable surface finish and dimensional tolerances on these copper threaded connectors, ensuring they provide a perfect, low-resistance mating surface for the spade terminal and contribute to a cool-running, stable transformer connection for decades.

NEMA Spaced Transformer Spades denote a specific and widely adopted standard configuration crucial for interchangeability and compatibility within the North American power sector and other regions following NEMA guidelines. The defining characteristic of a NEMA standard spade terminal is the precise 1-3/4 inch center-to-center distance between its two mounting holes. This standardized spacing ensures that the spade will fit perfectly onto the dual-stud arrangement found on countless transformers and related apparatus manufactured to this specification. These 1-3/4″ spaced spades are typically furnished with holes sized to accommodate 3/8″, 1/2″, or 3/4″ UNC threaded studs. The adoption of this standard simplifies inventory management for utilities and service companies, as they can stock a limited range of NEMA transformer lugs knowing they will fit a vast array of equipment in the field. Our manufacturing of NEMA spaced electrical connectors adheres rigorously to this dimensional standard, utilizing precision tooling and fixtures to guarantee the hole spacing is maintained within extremely tight tolerances. This commitment to standardization, combined with our high-grade materials and platings, makes our NEMA compliant spade terminals a reliable and universally compatible solution for maintaining and upgrading transformer connections across extensive power networks.

Technical Overview of Transformer Spade Connectors

Transformer Spade Terminals and Copper Studs are fundamental components designed for creating secure, high-current, and low-resistance connections in electrical transformers and switchgear. These components typically interface between transformer bushings and external cables or busbars. The NEMA spaced transformer spade, a key variant, features a standardized center-to-center hole spacing of 1-3/4 inches as per NEMA guidelines, ensuring compatibility and interchangeability across a wide range of equipment manufactured in North America and other regions following this standard. These spades are furnished with robust UNC threads—commonly 3/8″, 1/2″, and 3/4″—to accommodate standard transformer bushings. The primary function is to facilitate a mechanically robust and electrically efficient joint, minimizing thermal hotspots and voltage drop. Materials such as high-conductivity Copper, high-strength Bronze, and Brass are selected based on the required balance of electrical performance, mechanical strength, and corrosion resistance for applications ranging from pad-mounted distribution transformers to large power transformers.

Material Grades & International Specifications

We utilize only the highest grades of non-ferrous metals, sourcing materials that conform to a comprehensive range of global standards to ensure worldwide applicability and performance.

Our engineering team can advise on the optimal material selection based on your specific transformer bushing connector requirements, environmental conditions, and regulatory compliance needs.

Manufacturing Process, Machinery & Tolerances

Our manufacturing process is a blend of advanced technology and skilled craftsmanship. The production of transformer spade lugs and copper studs for transformers begins with precision cutting of certified material billets. This is followed by hot forging or cold forming processes to achieve the near-net shape with superior grain flow and strength. We employ state-of-the-art CNC machining centers, automatic threading machines, and high-tonnage forging presses to ensure dimensional accuracy and consistency. Critical features like the UNC thread profile and the 1-3/4″ NEMA spacing between holes are machined with extreme precision. We maintain tight geometric tolerances per ISO 2768-mK and dimensional tolerances within ±0.005 inches (±0.13mm) for critical features. The final stage involves deburring and surface preparation for plating. This controlled, in-house process allows for flexibility in production time and the ability to customize designs to meet unique customer drawings or to accommodate technical drawing changes suggested by our experienced engineers for improved functionality or manufacturability.

Plating Finishes for Enhanced Performance

To combat corrosion, improve solderability, and enhance surface conductivity, we offer a variety of premium plating finishes. These finishes are applied with controlled thickness to ensure longevity and performance.

• Electro-Tin Plating: A cost-effective and common finish providing good corrosion resistance and excellent solderability. Typical thickness: 5-10 microns.

• Silver Plating: Offers the highest electrical conductivity among platings, minimizing contact resistance. Essential for high-temperature applications. Typical thickness: 5-10 microns.

• Nickel Plating: Provides a hard, wear-resistant barrier with excellent corrosion resistance. Often used as an undercoat for other platings.

Industries & Applications

Our transformer spade terminals and copper bushing studs are critical components in numerous industries:

• Power Generation & Transmission: Used in generators, step-up/step-down transformers, and substation equipment.

• Electrical Transformer Manufacturing: Supplied to OEMs for integration into distribution, power, and instrument transformers.

• Railway & Mass Transit: For traction transformers and railway electrification systems.

• Renewable Energy: In wind turbine and solar power substation transformers.

• Industrial & Heavy Machinery: For furnace transformers, welding transformers, and large motor controls.

• Repair & Maintenance: A vital spare part for the refurbishment and servicing of existing transformer fleets worldwide.

Why Choose Our Transformer Spade Terminals & Studs?

Choosing us as your partner for electrical transformer connectors brings distinct advantages honed over 30 years of global exposure and experience.

• Unmatched Customization: Beyond standard NEMA spaced spades, we excel at producing custom-designed transformer lugs to your exact prints, including customized packaging with customer labels and logos.

• Engineering Partnership: Our technical team doesn’t just manufacture; they collaborate, offering value engineering suggestions to optimize your transformer bushing connector design.

• Proven Global Supply Chain: As a seasoned exporter from India, we have mastered logistics, documentation, and timely delivery to customers across the USA, Europe, the Middle East, Africa, and Asia-Pacific.

• Commitment to Communication: We pride ourselves on good communication skills, providing clear, timely updates throughout the 4-6 week turnaround time, ensuring you are never in the dark about your order’s status.

• End-to-End Quality Assurance: Our E-E-A-T is demonstrated through rigorous in-process checks and final inspection reports, providing traceability and confidence with every shipment.

Product Specifications & Dimensional Data

Typical Dimensional Chart for NEMA Spaced Transformer Spades

Note: Dimensions are typical. Custom sizes for copper spade terminals and bronze transformer spades are available upon request.

  A detailed line drawing of a transformer spade terminal, labeling all dimensions (A, B, C, D, E) and key features like the threaded stud and spade hole can be provided on request.

Customer Testimonials

James Peterson, Procurement Manager   USA:
“For over five years, we’ve relied on them for all our Bronze and Copper NEMA transformer spade requirements. The quality of their copper studs for transformer bushings is consistently excellent, meeting ASTM specs every time. Their customer support is proactive, and they’ve been instrumental in helping us customize parts for legacy equipment. A truly reliable global partner.”

Eleanor Davies, Director of Engineering –   UK:
“Their technical expertise in manufacturing Bronze transformer spades is impressive. When we had a unique design challenge for a high-vibration application, their engineering team suggested a minor but crucial change to the drawing that improved durability. The communication was superb, and delivery was on schedule. Highly recommended for critical electrical components.”

Frequently Asked Questions (FAQ)

Q1: What is the primary advantage of using Copper for transformer studs?
A: Copper offers the highest electrical conductivity, ensuring minimal energy loss and lower operating temperatures in high current transformer connections, which is critical for efficiency and longevity.

Q2: Why would I choose a Bronze transformer spade over a Copper one?
A: Bronze transformer spades provide significantly higher mechanical strength and better spring properties, making them ideal for applications subject to vibration, thermal cycling, or where higher clamping force is required on the transformer bushing.

Q3: What does ‘NEMA Spaced’ mean for a transformer spade terminal?
A: It specifies that the center-to-center distance between the mounting holes on the spade is 1-3/4 inches, a standard set by the National Electrical Manufacturers Association to ensure compatibility across much North American equipment.

Q4: Can you provide spade terminals with metric threads instead of UNC?
A: Absolutely. While 3/8″, 1/2″, and 3/4″ UNC threads are standard, we frequently manufacture custom transformer connectors with metric threads like M10, M12, or M16 to suit global equipment standards.

Q5: What plating do you recommend for a coastal environment?
A: For harsh, corrosive environments like coastal areas, we recommend silver plating or a nickel undercoat with tin plating for the transformer spade lugs to provide superior protection against salt-induced corrosion.

Q6: Do you offer material certification with the products?
A: Yes, we provide full Material Test Certificates (MTC) compliant with ASTM, BS, or other relevant standards, confirming the grade and properties of the copper or bronze used, as part of our commitment to traceability.

Q7: What is your typical lead time for an order of custom transformer studs?
A: Our standard turnaround time for custom or bulk orders is 4 to 6 weeks, which includes material procurement, production, quality checks, and packaging. We communicate timelines clearly upfront.

Q8: How do you ensure the dimensional accuracy of the NEMA spacing?
A: We use precision CNC machining centers and dedicated fixtures to machine the spade holes, followed by verification with digital calipers and CMM (Coordinate Measuring Machine) for critical batches, ensuring the 1-3/4″ spacing is held to tight tolerances.

Q9: Can you produce spades according to our in-house engineering drawing?
A: Certainly. Our core strength is customization. We regularly produce transformer spade terminals from customer-supplied drawings and welcome the opportunity for our engineers to review them for manufacturability enhancements.

Q10: What industries most commonly use your transformer bushing connectors?
A: Our copper and bronze spades are widely used in transformer manufacturing, power utility networks, railway electrification, and heavy industrial maintenance, wherever robust, high-current electrical connections are needed.

Q11: What packaging options do you offer for export?
A: We use sturdy, corrosion-inhibiting packaging like VCI paper and wooden crates for sea freight. We also offer customized packaging with your company’s labels and logo for direct resale or inventory management.

Q12: Are your products suitable for high-temperature applications?
A: Yes, especially our silver-plated copper studs for transformers and bronze spades, which can withstand elevated temperatures encountered in transformer hotspots better than standard tin-plated parts.

Q13: What is the difference between a spade terminal and a lug in this context?
A: In transformer applications, the terms are often used interchangeably. Typically, a transformer spade terminal refers to the flat, forked connector, while a lug is a broader term. Our products encompass both spade lugs and threaded stud connectors.

Q14: Do you supply the corresponding nuts and washers?
A: Yes, we can supply matching high-temperature nuts and Belleville washers or flat washers as a complete transformer connector kit, ensuring a perfect fit and optimal connection integrity.

Q15: How does your location in India benefit international customers?
A: As a leading manufacturer and exporter from India, we combine high-quality engineering with competitive cost structures and a deep understanding of international export logistics, standards, and documentation, providing excellent value.

Glossary of Terms

• NEMA: National Electrical Manufacturers Association. Defines standards for electrical equipment, including the 1-3/4 inch spacing for transformer spade terminals.

• UNC: Unified National Coarse. A standard thread form widely used in the United States and on transformer bushings. Common sizes are 3/8″-16, 1/2″-13, and 3/4″-10 UNC.

• ETP Copper: Electrolytic Tough Pitch Copper. The standard high-conductivity copper (C11000) used for copper transformer studs and electrical conductors.

• Phosphor Bronze: A copper-tin alloy with a small amount of phosphorus, known for its strength, fatigue resistance, and good conductivity, used in bronze transformer spades.

• Bushing (Transformer Bushing): An insulated conductor that passes through the transformer tank, allowing electrical connection to the windings inside. Our spade terminals connect directly to these bushings.

• Plating (Tin/Silver/Nickel): A thin metallic coating applied to the base metal (Copper/Bronze) to prevent corrosion, improve solderability, or enhance surface conductivity.

• IACS: International Annealed Copper Standard. A measure of electrical conductivity, with pure copper defined as 100% IACS. Our copper studs typically exceed 101% IACS.
